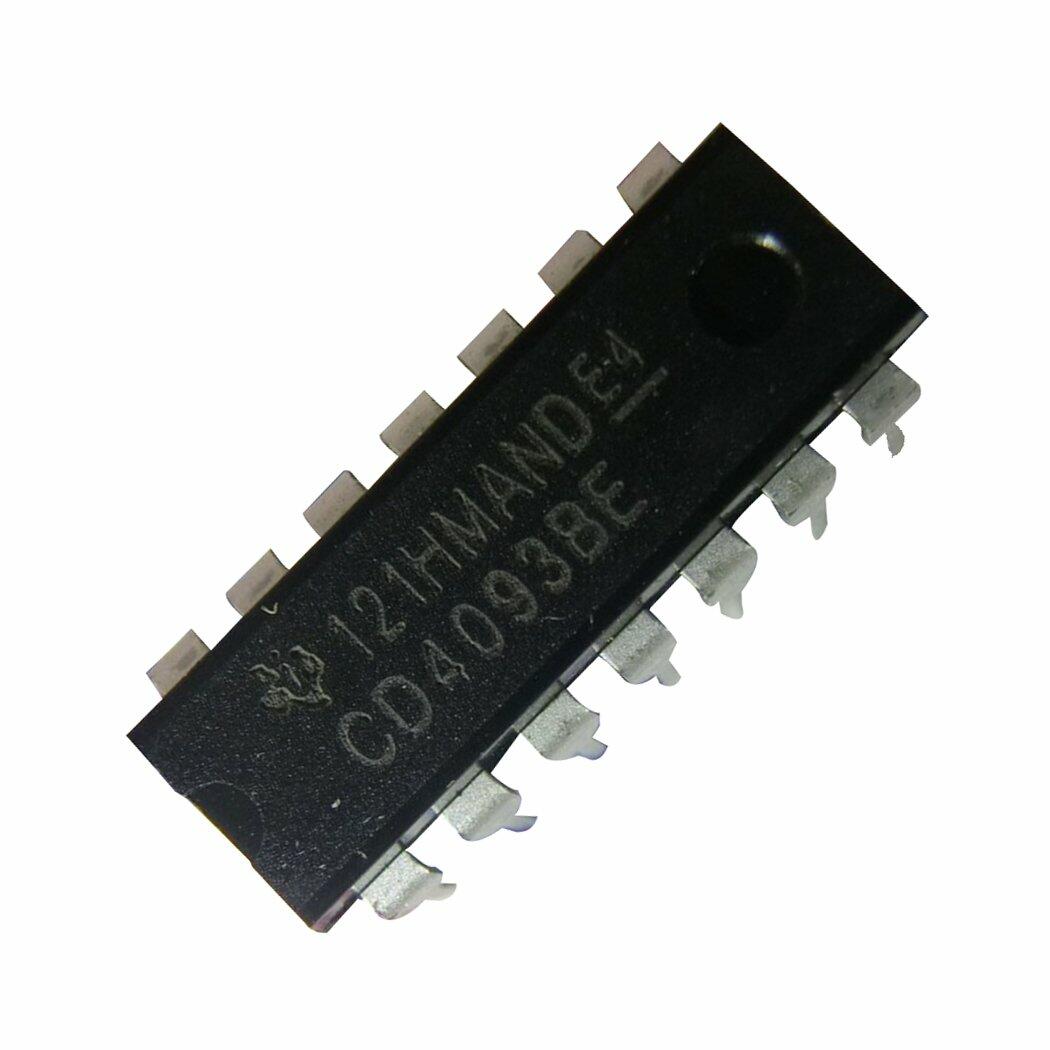

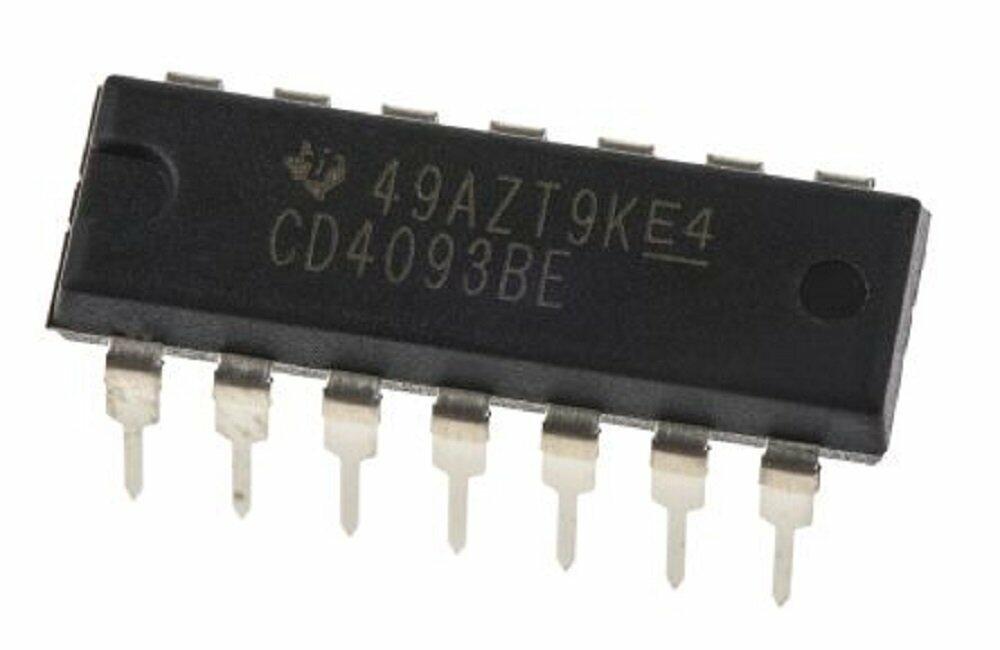

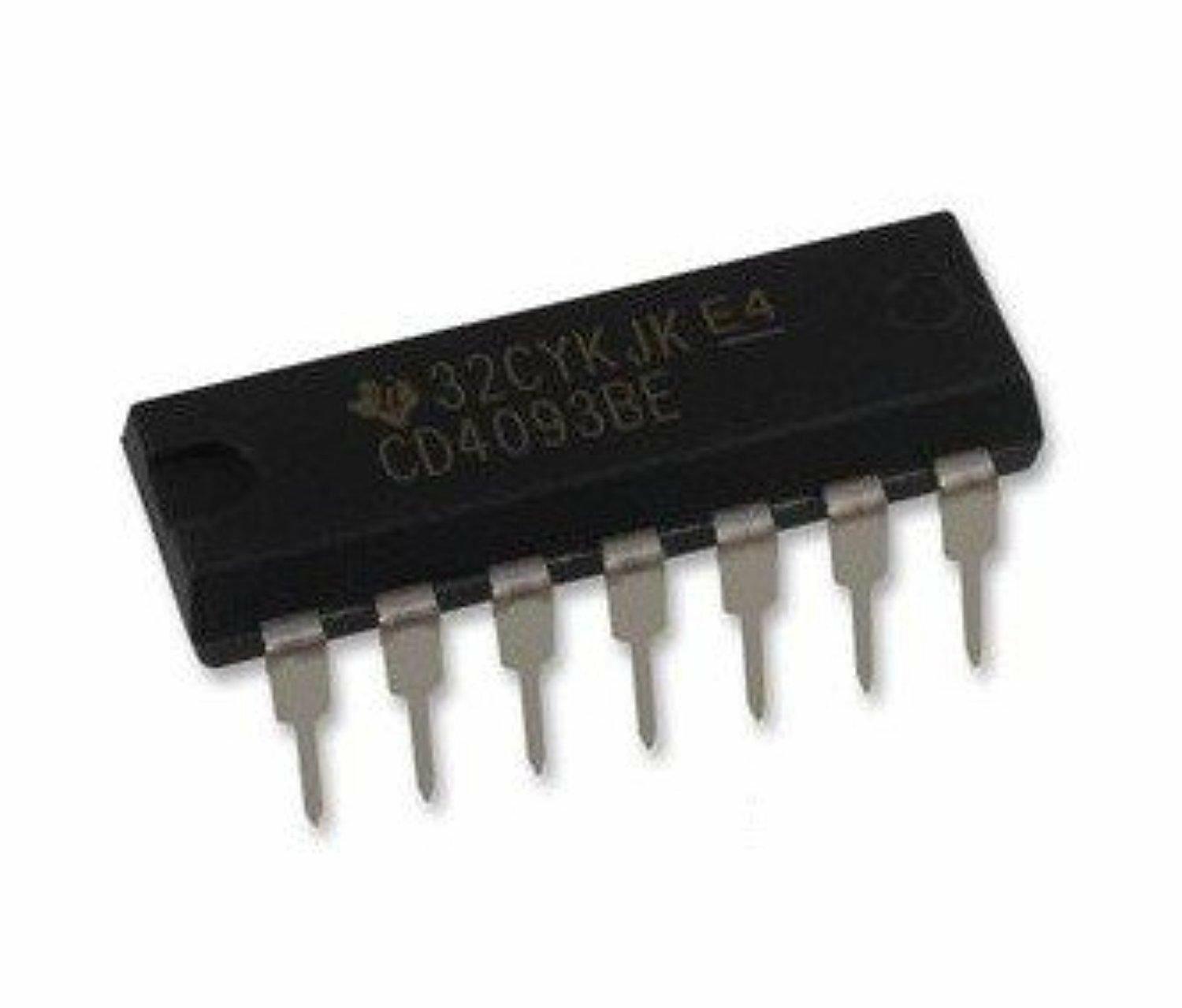

Texas Instruments CD4093BE CD4093 CMOS Quad 2-Input NAND Schmitt Triggers (Pack of 15)

CD4093B consists of four Schmitt-trigger circuits. Each circuit functions as a two-input NAND gate with Schmitt-trigger action on both inputs. The gate switches at different points for positive- and negative-going signals. The difference between the positive voltage (VP) and the negative voltage (VN) is defined as hysteresis voltage (VH)

FEATURES

• Schmitt-trigger action on each input with no external components
• Hysteresis voltage typically 0.9 V at VDD = 5 V and 2.3 V at VDD = 10 V
• Noise immunity greater than 50%
• No limit on input rise and fall times
• Standardized, symmetrical output characteristics
